The M11 is a larger addition to the Ritter line of automatic autoclaves with reliability and efficiency as one of its many assets. The M11, like the M9, features a door that opens automatically and quietly, making sterilization a set-it-and-forget-it procedure. Its unique 11" by 18" chamber gives it the distinction of the largest sterilizing capacity of any standard countertop autoclave on the market, making it perfect for larger packs and instruments. The Steam–Flush Pressure Pulse Air Removal System is so efficient that it can pass the air removal tests required on more complex vacuum steam sterilizer systems, thus ensuring good steam penetration for proper sterilization. Plus less complexity means better reliability and a cost effective solution for your sterilization needs. An optional printer accessory, available on the M11, provides records of the cycle, cycle time, temperature, and pressure.

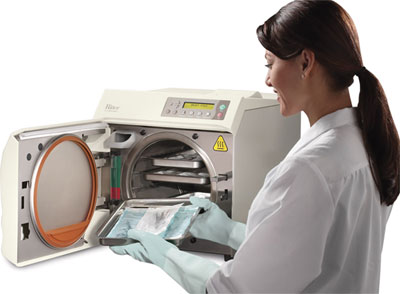

The Ritter M11 autoclave has easy front access for filling and draining and has controls that are easy to understand.
Self Program Controls
Programmable controls allow for creation of different cycle parameters for special sterilization needs. Programmable buttons allow you to change the following: Time (3 to 90 minutes), Temperature (230 to 275º F), Dry Time (0 to 60 minutes), Vent (slow or fast) and two program buttons. The #1 and #2 buttons allow you to store the change if desired.
Four pre-programmed sterilization cycle controls: Unwrapped (132º C or 270º F for 3 minutes), Pouched (132º C or 270º F for 5 minutes), Packs (121º C or 250º F for 30 minutes), Handpiece (Dental Handpiece use only)
Indicates cycle selected, temperature and exposure time for selected cycle. During the cycle, the display shows messages describing status of cycle. When the cycle enters sterilization mode, remaining time is displayed as well as temperature and pressure.
(Initiates selected cycle)
(Terminates selected cycle or function)
The Right Thing to Do…For Your Staff and For Your Practice
You and your staff’s time is precious, so why waste it? Break free from your sterilizer with the reliable and efficient Ritter M11 UltraClave Automatic Sterilizer and spend your time on more important tasks. Make the industry-leading sterilizers your choice for sterilization and have peace of mind.
Overall length w/plug: 23.8" (60.5 cm)
Overall width: 17.8" (45.2 cm)
Overall height w/printer: 17.8" (45.2 cm)
Minimum Countertop area: 17.8" x 21.0" (45.2 x 53.3 cm)
11" diameter (28 cm) 18" depth (45.7 cm)
6.5 gal. usable volume (24.6 liters)
Two large – 9" W x 15" L x 1.1" D (22.9 cm x 38 cm x 2.9 cm)
Two small – 6.6" W x 15" L x 1.1" D (16.8 cm x 38 cm x 2.9 cm)
Unit weight: 99 lbs. (44.9 kg)
Shipping weight: 131 lbs. (59.4 kg)
Water reservoir capacity: 1.4 gal. (5.3 liters)
115 VAC, 50/60 Hz, 15 Amps Single Phase
115 VAC has 1425 watt tubular immersion heater
CAN/CSA C22.2 No. 1010
CAN/CSA C22.2 No. 1010.2-041-96
Meets the requirements of ASME Boiler and Pressure Vessel Code
A separate (dedicated) circuit is recommended for this sterilizer.
