**IQmark Diagnostic Station Software:

Please Note:
Midmark IQmark products require the IQmark diagnostic station software to run.  If you already have the IQmark diagnostic station software from a previous unit you are NOT required to purchase another software packet.  However, if this is your first IQmark unit you must purchase the software to properly run your equipment.

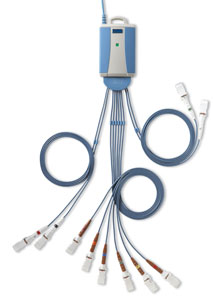

The Midmark IQecg makes your job easier with a range of reviewing and editing tools to help increase productivity and efficiency. At the touch of a button, you can capture an abnormal ECG as it appears on screen, enhance the diagnosis with tools like zoom and electronic calipers, quickly edit statements and perform serial comparison. Features include:

• Lightweight, portable design, weighing less than 11 oz.
• View and monitor live, 12-lead ECG in selectable formats on screen
• Interpret and analyze data for neonate, pediatric and adult patients via the Midmark 12-lead Resting Electrocardiogram Analysis Program
• Review and edit ECG results on-screen with free text or customizable quick edit statements
• Perform serial comparison with overlay of up to 4 ECG tests
• Save time and reduce data entry errors by populating patient information directly from your EHR/EMR software
• Facilitate paperless office strategy-eliminate costs of thermal paper and the hassles of scanning and filing patient charts

Specifications

Intuitive user interface: Quick to learn, easy to use
Preview and monitor: Real-time 12-lead ECG
Acquire and store: 10 seconds of 12-lead ECG with auto-interpretation and measurements with one mouse click
Interpretation: Provided by Midmark 12-lead Resting Electrocardiogram Analysis Program for adult and pediatric patients
Review and Edit: On screen with zoom, electronic calipers, free text and customizable quick edit statements
Serial comparison With overlay of up to 4 ECG tests
Store 55,000 ECG in 1GB of hard-drive space
EMR/EHR Field proven seamless integration with more than 80 EMR/EHRs

Patient Connection

10-lead patient cable with RFI filter, defibrillator protection and patient isolation

Safety Parameters

Patient leakage current not to exceed 10uA
Ground leakage current no to exceed 50uA
Patient electrically isolated from main current supply

Physical Characteristics

USB Version

Weight 10.2 oz.
Dimensions 3.5 in. (88mm) x 5.7 in. (175mm) x 1.2 in. (30mm) (W x L x H)
Power: No batteries required

Serial Version

Weight 9.5 oz. (11.2 oz. with batteries)
Dimensions 3.5 in. (88mm) x 5.7 in. (175mm) x 1.2 in. (30mm) (W x L x H)
Power: Two (2) 1.5V AA alkaline batteries

ECG Acquisition

Impedance: >100 megohms
Frequency response: 0.05-150Hz-3dB
Filters: AC, drift, muscle
Sensitivity: 5, 10, 20mm/mV
Dynamic range: ± 10mV
ADC resolution: 13 bits at 2.44uV/bit
Electrode offset: ± 300mV per AAMI and EC-11 specifications
Acquisition rate: 500 samples/sec

Warranty

• 12 months on ECG
• 90 days on patient cable
